CM2 Intersect E2

current version: 5.4.1 (March 2024)

Edge Mesh Intersections Repairer

CM2 Intersect E2 is a specialized tool for repairing edge meshes (2D and 3D).

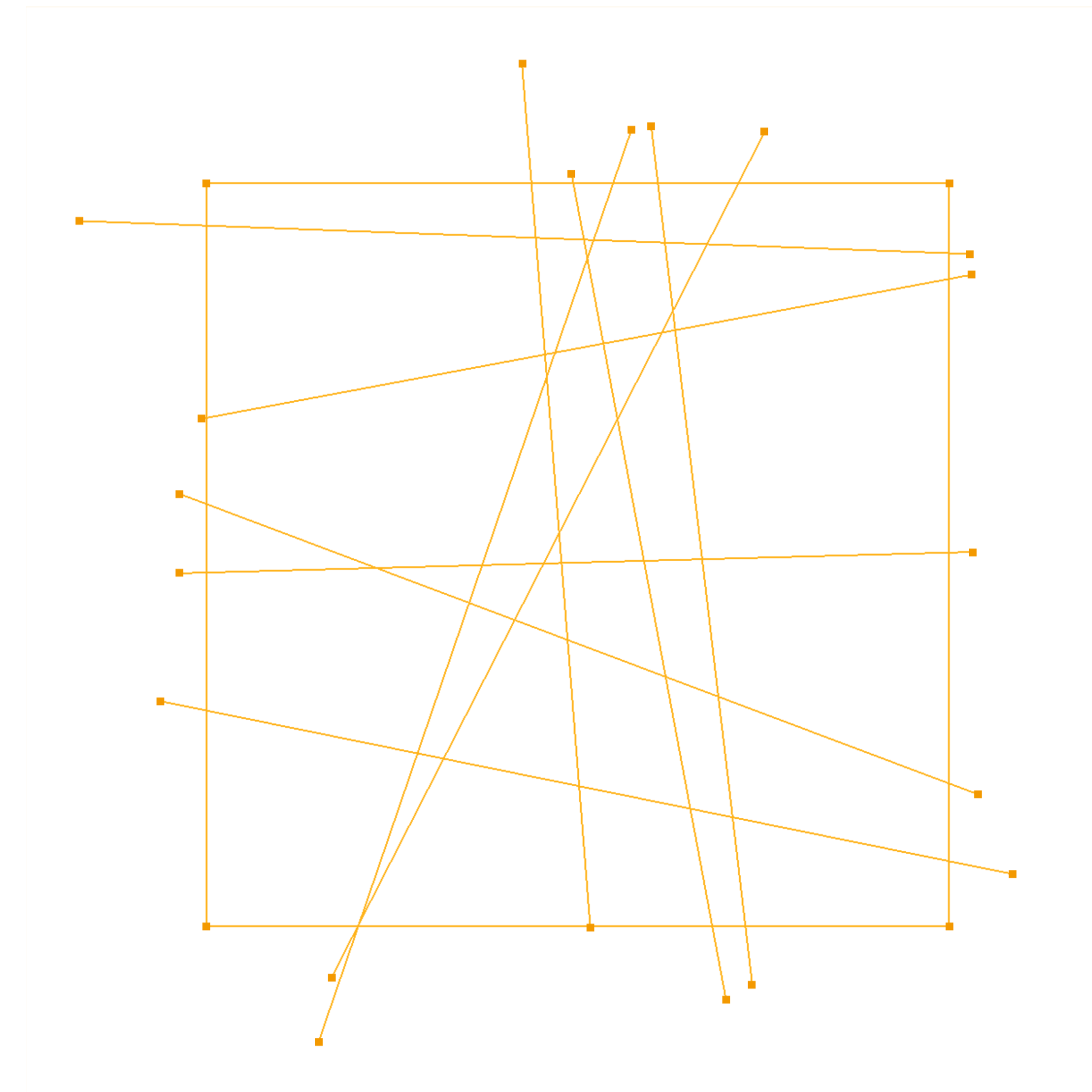

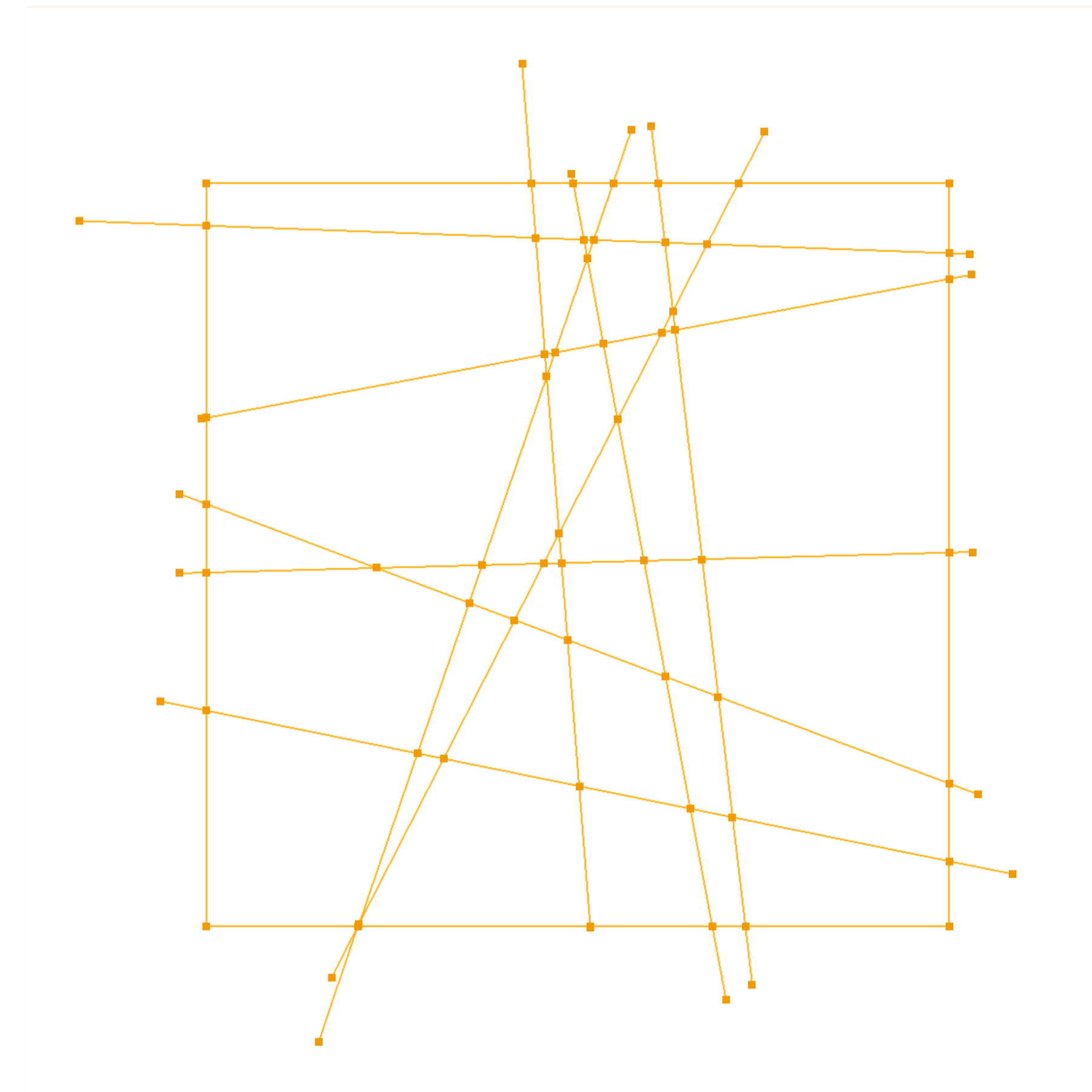

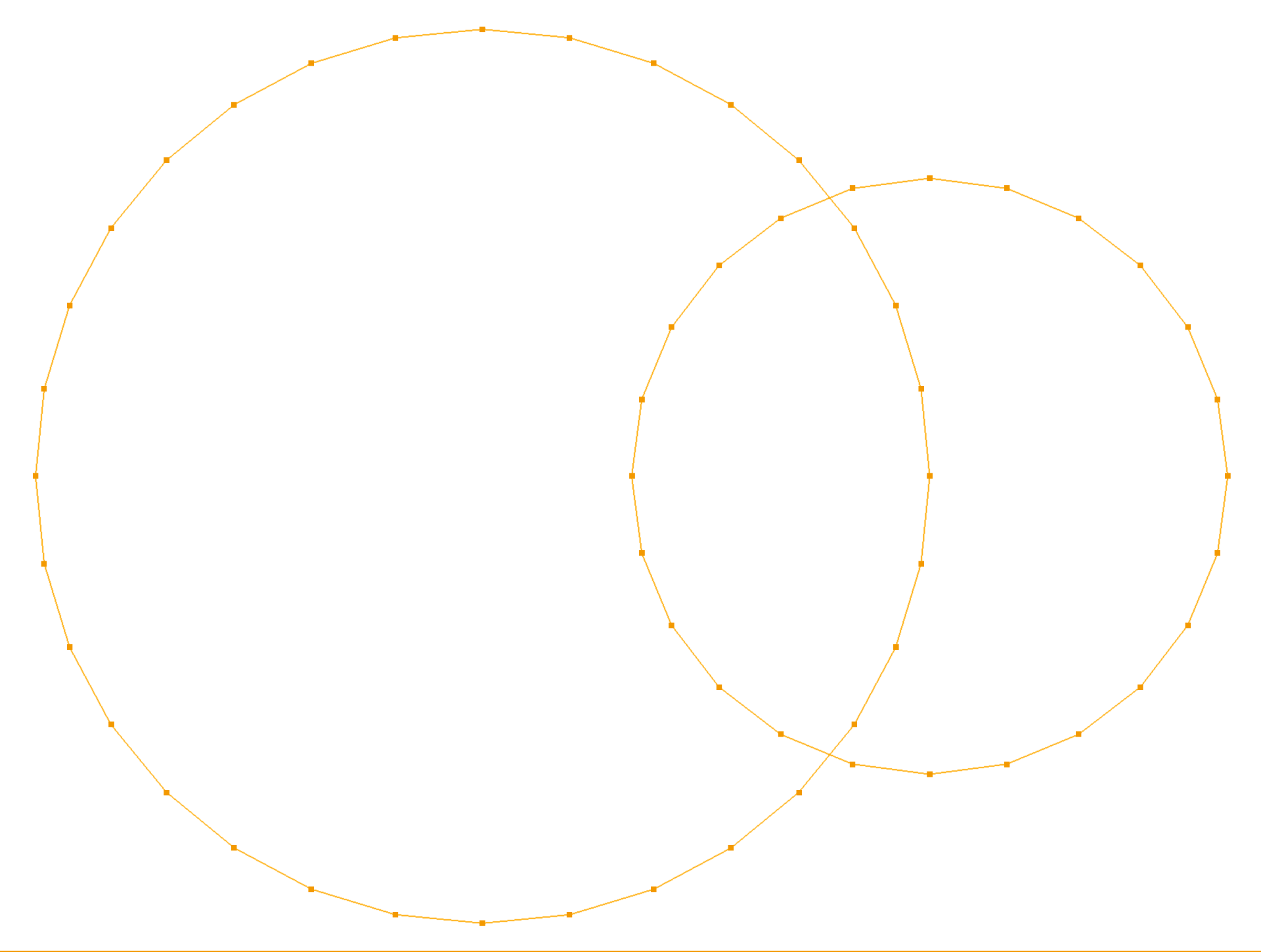

From one, two or more independent and possibly (self) intersecting contour meshes (2-node edges), this tool fixes all intersections (by splitting edges and adding new nodes at intersection points) to make a valid mesh suitable for instance for a plane meshing with CM2 TriaMesh Iso/Aniso or CM2 QuadMesh Iso/Aniso.

CM2 Intersect E2 can be used conveniently in conjunction with cm2::meshtools1d::remesh_lines (a function of CM2 MeshTools Core included with all licenses).
The former heals the topological errors (intersections, overlappings) and the later remeshes the lines (possibly locally).

Technical
Specifications

  • 2D and 3D contour fixer
  • n/a
  • Specific
  • 2-node edges (2D or 3D)
  • 2-node edges (2D or 3D)
  • no
  • n/a

*Speed tests done on Win10 x64 Pro, Intel® Xeon E3 v2 1370 @3.5 GHz (turbo boost disabled), 8 threads.

Strong Foundations

CM2 Intersect E2 is written in streamlined standard C++ with a clear API.

Pre-compiled dynamic libraries and source code are available for Microsoft Windows, Linux and Apple macOS.
Visit the CM2 MeshTools SDK page to learn about all available builds.

Easy Integration with C++ on Microsoft Windows, Linux and Apple macOS

A COM interface is also available making CM2 Intersect E2 callable from other languages such as Visual Basic, C#, F# and Delphi.

Microsoft .NET, Visual Studio, C-Sharp, F-Sharp and Delphi also available
NEED MORE INFORMATION?

Free 45-Day Trial

Find out for yourself how easy it is to integrate our SDK into your products. We offer a free 45-day trial. All you need to request your trial is a free developer account.

Like to open a free developper account with us?
Just submit this registration form.

You already have a free developer account with us?
Just log in and visit our trial request page.

Pricing + Support Services

Pricing and discount policies are available in the pricing brochures. To download them, we only require you to open a developper account with us. It's free: just fill and submit this registration form. It's that easy!

We offer the first 12 months of our comprehensive Support Services with your initial purchase of CM2 Intersect E2.

Computing Objects professional support services are available directly from our website (access our support services) or via email. They includes downloads of all the latest updates: critical, minor (regular bug fixing) and major updates (enhancements + new features).

We offer special discounts on support services extensions (12, 24 or 36-month) when ordered with your initial purchase.

After this initial period, support services can be easily renewed at the regular price.
Please refer to our latest pricing brochures or contact us if you have any questions.
