CM2 SurfMesh Q4

current version: 5.3.0 (November 2022)

Surface All-Quad / Quad-Dominant Mesh Generator for CAD Models

CM2 SurfMesh Q4 is a surface all-quad / quad-dominant mesh generator based on CM2 QuadMesh Aniso, CM2 TriaMesh Aniso and OpenCascade (OCCT).

Meshing is done with CM2 QuadMesh Aniso in the reference frame (2D plane) and nodes are mapped to the XYZ reference coordinate frame (3D surface). The OpenCascade kernel is used to compute reference points, images, tangents and curvatures.

Mesh size, maximal chordal error and anisotropic meshing on surfaces can be specified.

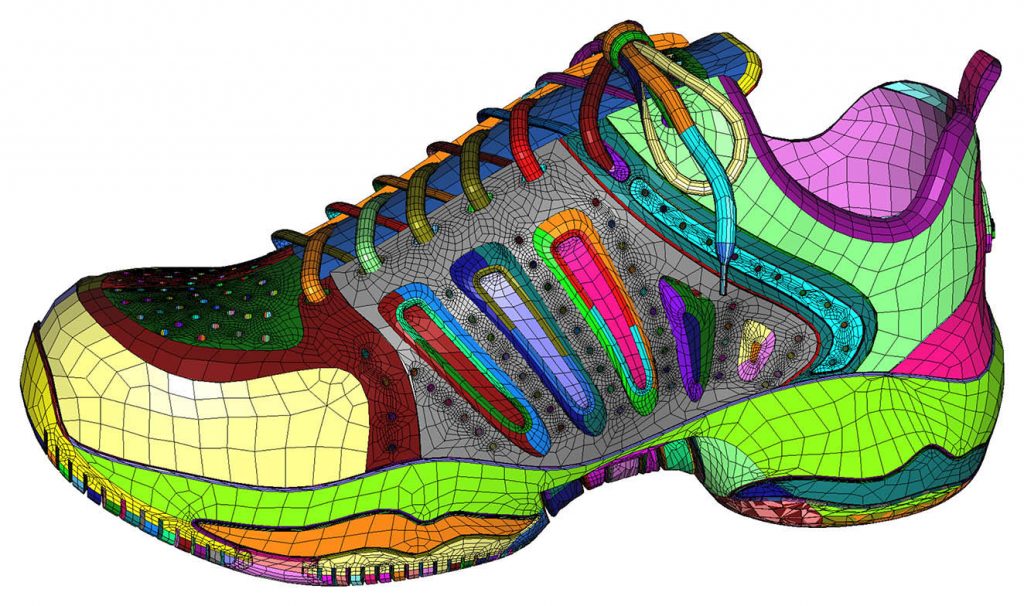

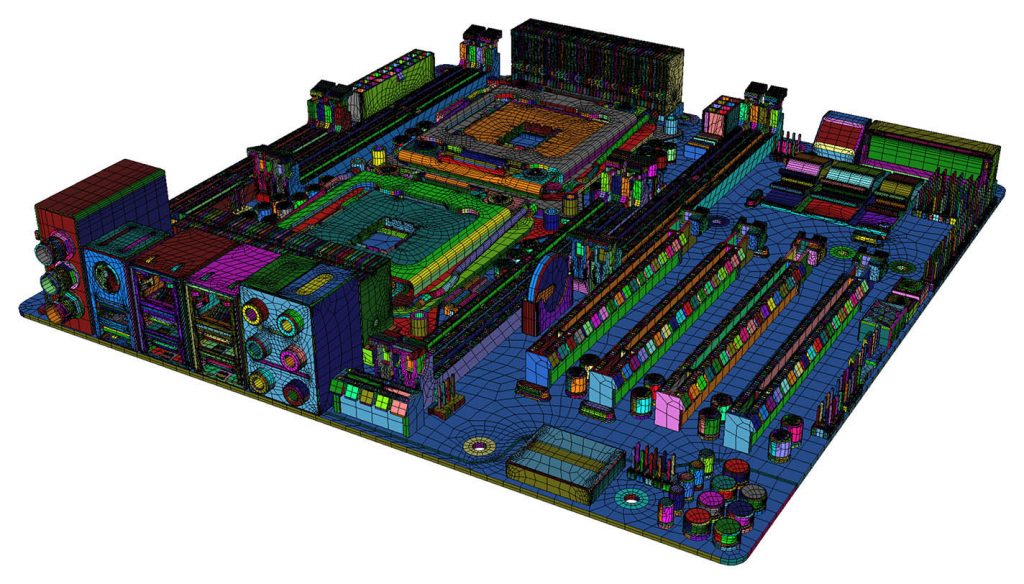

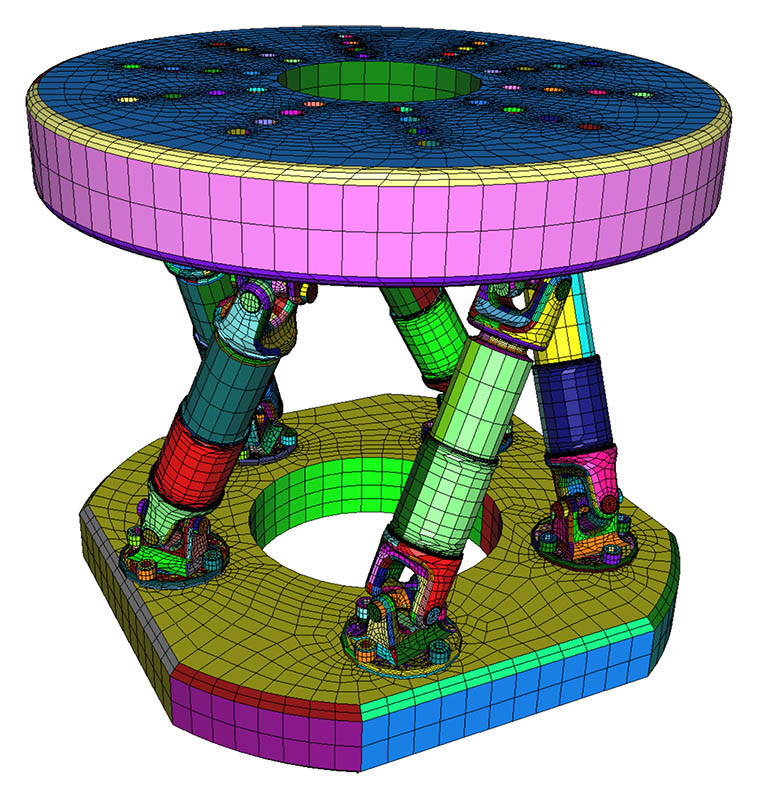

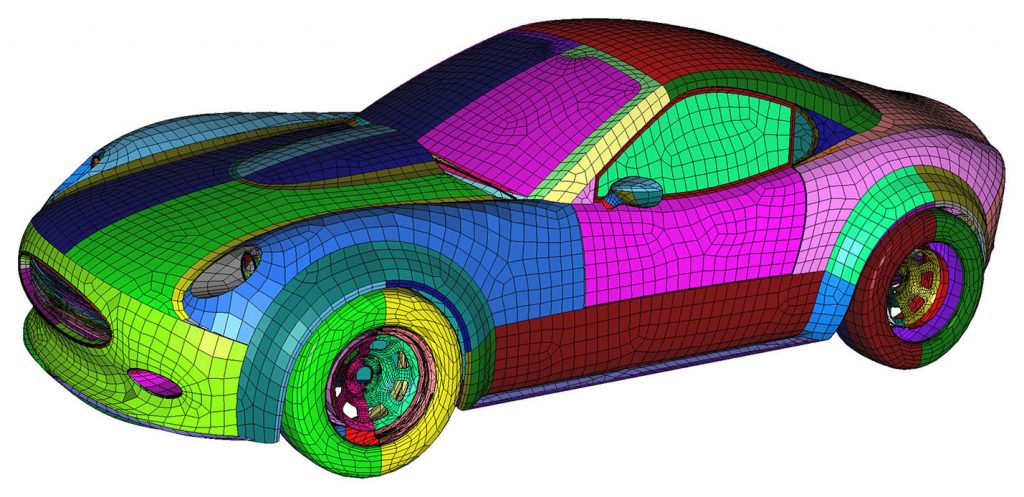

Meshes on the 3D surface can be isotropic (squares and equilateral triangles as much as possible) or anisotropic to reduce the number of elements keeping the same chordal error (stretched elements on fillets for instance).

CM2 SurfMesh Q4 can generate 9-node quads, 8-node quads and 6-node triangles with mid-nodes projected onto the exact CAD surfaces (curved faces) or not (plane faces).

CM2 SurfMesh Q4 can read B-Rep, IGES and STEP files or mesh directly any OCCT TopoDS_Shape object.

Quad-Dominant Mode

All-Quad Mode

Technical
Specifications

  • Surface mesh generator
  • Isotropic or anisotropic
  • Hybrid Advancing-front & Delaunay
  • CAD models (B-Rep, IGES or STEP)
  • Mixed quadrangles and triangles, or all-quad. Linear or quadratic
  • yes
  • ≥ 4 000 elements / s

*Speed tests done on Win10 x64 Pro, Intel® Xeon E3 v2 1370 @3.5 GHz (turbo boost disabled), 8 threads.

Easy integration

CM2 SurfMesh Q4 is written in streamlined standard C++ with a clear API.

Pre-compiled dynamic libraries and source code are available for Microsoft Windows, Linux and Apple macOS.
Visit the CM2 MeshTools SDK page to learn about all available builds.

Easy Integration with C++ on Microsoft Windows, Linux and Apple macOS

Free 45-Day Trial

Find out for yourself how easy it is to integrate our SDK into your products. We offer a free 45-day trial. All you need to request your trial is a free developer account.

Like to open a free developper account with us?
Just submit this registration form.

You already have a free developer account with us?
Just log in and visit our trial request page.

Pricing + Support Services

Our complete pricing and discount policies are available in our pricing brochures. To download them, we only require you to open a developper account with us. It's free: just fill and submit this registration form. It's that easy!

We offer the first 12 months of our comprehensive Support Services with your initial purchase of CM2 SurfMesh Q4.

Computing Objects professional support services are available directly from our website (access our support services) or via email. They includes downloads of all the latest updates: critical, minor (regular bug fixing) and major updates (enhancements + new features).

We offer special discounts on support services extensions (12, 24 or 36-month) when ordered with your initial purchase.

After this initial period, support services can be easily renewed at the regular price.
Please refer to our latest pricing brochures or contact us if you have any questions.
