CM2 TetraMesh Aniso
current version: 5.3.0 (November 2022)
Delaunay Solid Anisotropic Tetrahedron Mesh Generator
CM2 TetraMesh Aniso is our Delaunay solid anisotropic tetrahedral mesh generator for your FEA (Finite Element Analysis) applications.

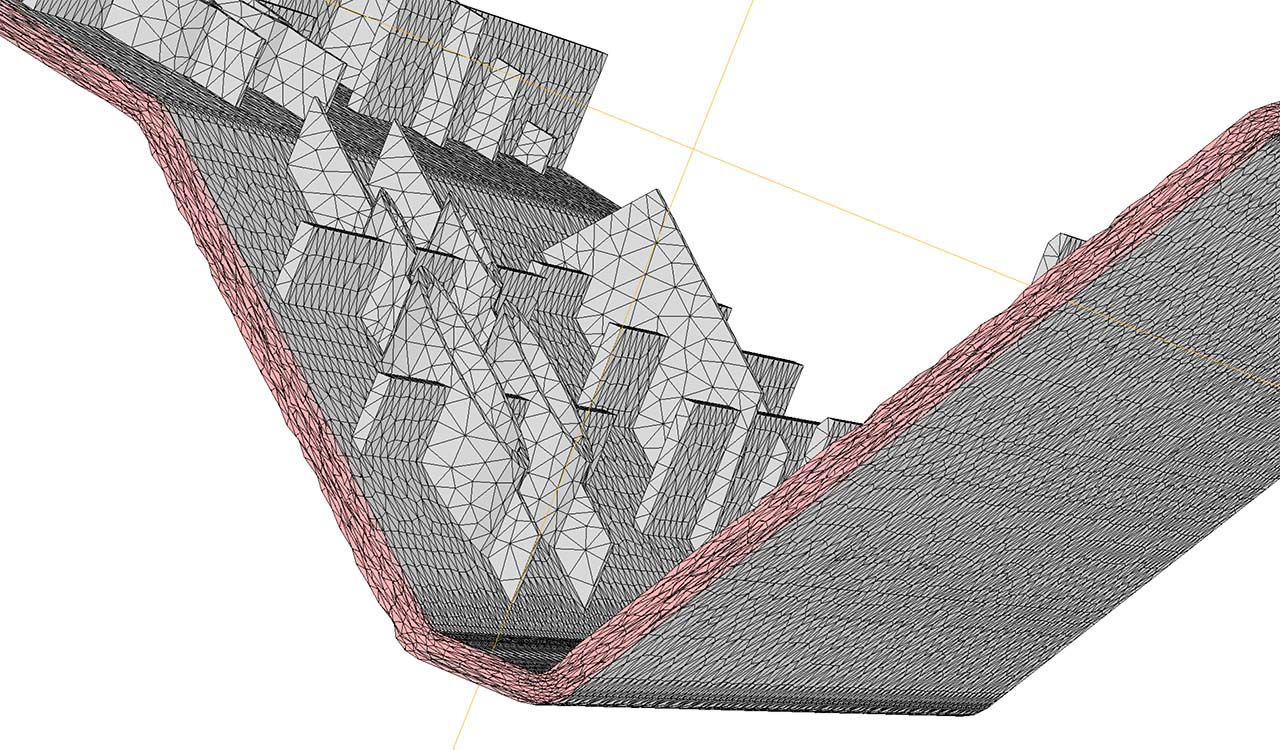

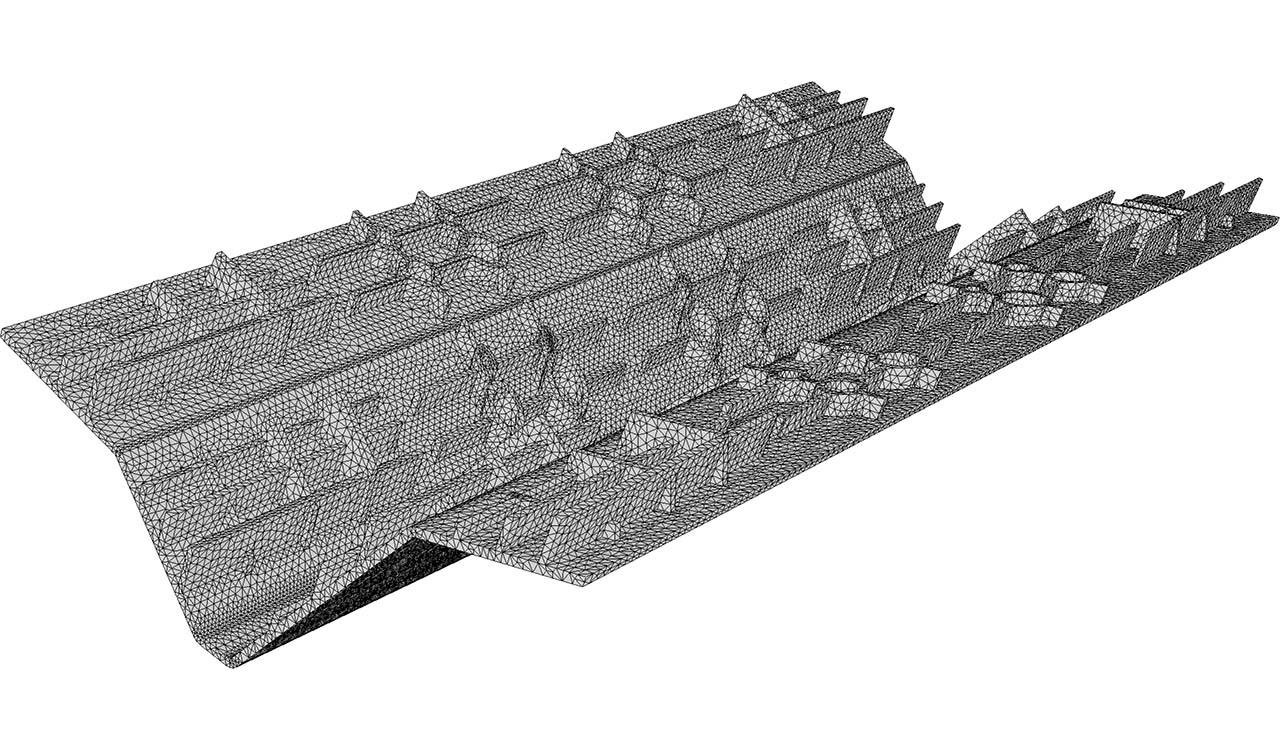

Whereas the Iso counterpart tends to generate equilateral tetrahedrons adapted to local isotropic mesh sizes (scalars), this mesher generates stretched tetrahedrons adapted to local anisotropic metrics (3×3 symmetric matrices defining 3 directions and 3 sizes at each node).
CM2 TetraMesh Aniso also respects user-defined constraints: outer and inner boundary faces, specific embedded faces, edges and nodes, local mesh sizes (anisotropic), maximum size gradations and background mesh.
High-order elements, for instance 10-node tetrahedrons, can be generated with the help of CM2 MeshTools SDK core functions (provided free of charge with all licenses).
- Solid mesh generator (3D)
- Hybrid Advancing-front & Delaunay
- 3-node triangles (outer/embedded), 2-node edges (embedded), inner nodes (embedded)
- 4-node tetrahedrons
- ≥ 7 000 tetrahedrons / s.
*Speed tests done on Win10 x64 Pro, Intel® Xeon E3 v2 1370 @3.5 GHz (turbo boost disabled), 8 threads.
CM2 TetraMesh Aniso is written in streamlined standard C++ with a clear API.
Pre-compiled dynamic libraries and source code are available for Microsoft Windows, Linux and Apple macOS.
Visit the CM2 MeshTools SDK page to learn about all available builds.
A COM interface is also available making CM2 TetraMesh Aniso callable from other languages such as Visual Basic, C#, F# and Delphi.
Free 45-Day Trial
Find out for yourself how easy it is to integrate our SDK into your products. We offer a free 45-day trial. All you need to request your trial is a free developer account.
Like to open a free developper account with us?
Just submit this registration form.
You already have a free developer account with us?
Just log in and visit our trial request page.
Pricing + Support Services
Our complete pricing and discount policies are available in our pricing brochures. To download them, we only require you to open a developper account with us. It's free: just fill and submit this registration form. It's that easy!
We offer the first 12 months of our comprehensive Support Services with your initial purchase of CM2 TetraMesh Aniso.
Computing Objects professional support services are available directly from our website (access our support services) or via email. They includes downloads of all the latest updates: critical, minor (regular bug fixing) and major updates (enhancements + new features).
We offer special discounts on support services extensions (12, 24 or 36-month) when ordered with your initial purchase.
After this initial period, support services can be easily renewed at the regular price.
Please refer to our latest pricing brochures or contact us if you have any questions.
CM2 Intersect® T3
CM2 Intersect T3 is the surface triangle mesh repairer from the CM2 MeshTools SDK. The initial and final surface meshes are all-triangle meshes.
CM2 Intersect T3 can repair the input surface mesh for CM2 TetraMesh Iso for instance.
CM2 SurfMesh® T3
CM2 SurfMesh T3 is the CAD surface (IGES, STEP, B-REP) triangle mesh generator from the CM2 MeshTools SDK (partially based on the OpenCascade kernel).
CM2 SurfMesh T3 can generate the input surface mesh for CM2 TetraMesh Iso or CM2 TetraMesh Aniso for instance.
CM2 SurfRemesh® T3
CM2 SurfRemesh T3 is the surface triangle remesher from the CM2 MeshTools SDK. The initial surface is defined by an all-triangle mesh (STL-mesh, deformed mesh, mesh too coarse or too fine…)
CM2 SurfRemesh T3 can improve/regenerate the input surface mesh for CM2 TetraMesh Iso or CM2 TetraMesh Aniso for instance.
CM2 TetraMesh® Iso
CM2 TetraMesh Iso is the Delaunay solid isotropic tetrahedral mesh generator from the CM2 MeshTools SDK for (as good as possible) equilateral tetrahedrons.
CM2 TetraMesh Iso can fill the volume(s) inside the surface mesh generated by CM2 SurfMesh T3 or CM2 SurfRemesh T3 for instance.
