CM2 TriaMesh Iso

current version: 5.4.1 (March 2024)

Delaunay Plane Isotropic Triangle Mesh Generator

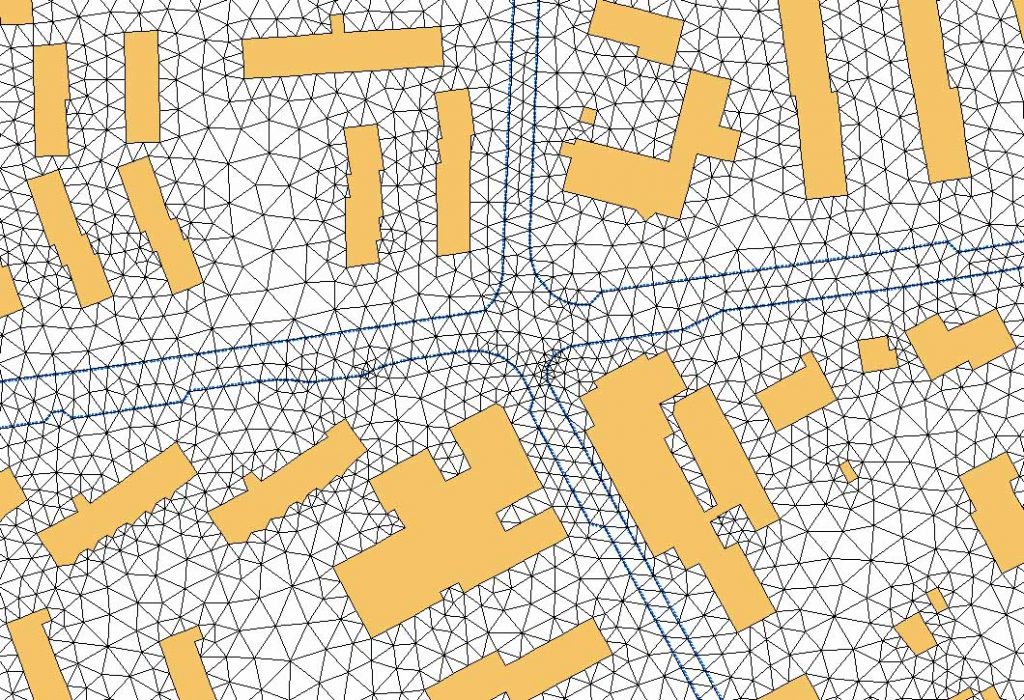

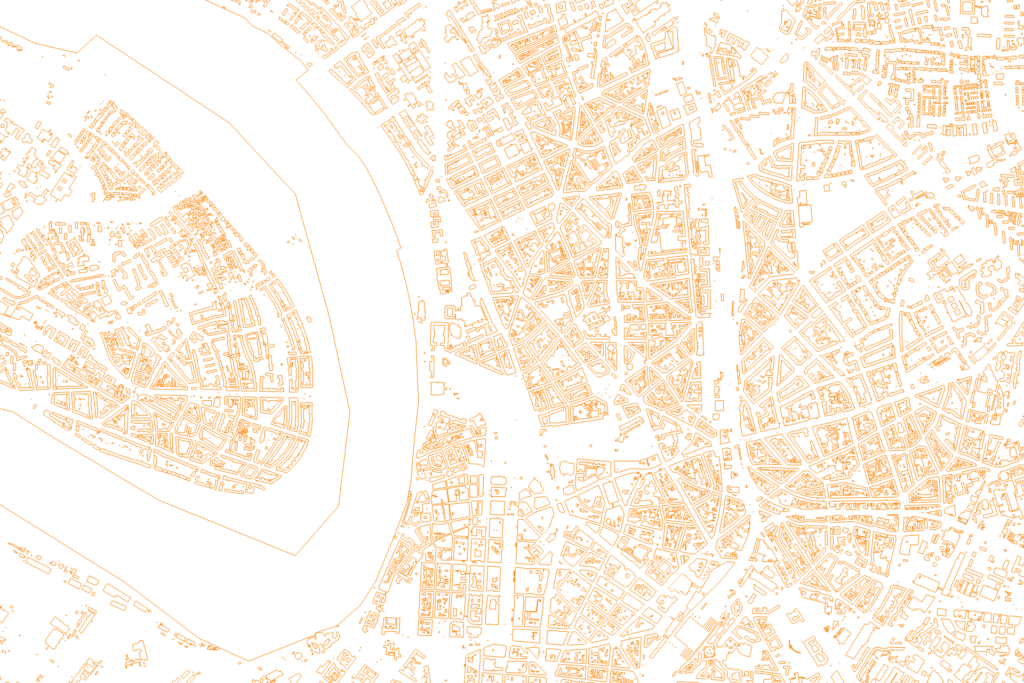

CM2 TriaMesh Iso is our Delaunay plane isotropic triangle mesh generator for your FEA (Finite Element Analysis) or CGI (Computer Generated Imagery) applications. It generates equilateral triangles (as good as possible) respecting user-defined constraints like outer and inner boundary edges, specific embedded edges and nodes, local mesh sizes (isotropic), maximum size gradations and background mesh.

High-order elements, for instance 6-node triangles, can be generated with the help of CM2 MeshTools SDK core functions (provided free of charge with all licenses).

Technical
Specifications

  • Plane mesh generator (2D)
  • Isotropic
  • Hybrid Advancing-front & Delaunay
  • 2-node edges (outer/embedded), inner nodes (embedded)
  • 3-node triangles
  • no
  • ≥ 30 000 triangles / s.

*Speed tests done on Win10 x64 Pro, Intel® Xeon E3 v2 1370 @3.5 GHz (turbo boost disabled), 8 threads.

Strong Foundations

CM2 TriaMesh Iso is written in streamlined standard C++ with a clear API.

Pre-compiled dynamic libraries and source code are available for Microsoft Windows, Linux and Apple macOS.
Visit the CM2 MeshTools SDK page to learn about all available builds.

Easy Integration with C++ on Microsoft Windows, Linux and Apple macOS

A COM interface is also available making CM2 TriaMesh Iso callable from other languages such as Visual Basic, C#, F# and Delphi.

Microsoft .NET, Visual Studio, C-Sharp, F-Sharp and Delphi also available
NEED MORE INFORMATION?

Free 45-Day Trial

Find out for yourself how easy it is to integrate our SDK into your products. We offer a free 45-day trial. All you need to request your trial is a free developer account.

Like to open a free developper account with us?
Just submit this registration form.

You already have a free developer account with us?
Just log in and visit our trial request page.

Pricing + Support Services

Pricing and discount policies are available in the pricing brochures. To download them, we only require you to open a developper account with us. It's free: just fill and submit this registration form. It's that easy!

We offer the first 12 months of our comprehensive Support Services with your initial purchase of CM2 TriaMesh Iso.

Computing Objects professional support services are available directly from our website (access our support services) or via email. They includes downloads of all the latest updates: critical, minor (regular bug fixing) and major updates (enhancements + new features).

We offer special discounts on support services extensions (12, 24 or 36-month) when ordered with your initial purchase.

After this initial period, support services can be easily renewed at the regular price.
Please refer to our latest pricing brochures or contact us if you have any questions.

NEED A QUOTE?

Complementary Products

CM2 TriaMesh® Aniso

CM2 TriaMesh Aniso is the Delaunay plane anisotropic triangle mesh generator from the CM2 MeshTools SDK for plane stretched triangle meshes.

CM2 QuadMesh® Iso

CM2 QuadMesh Iso is the Delaunay plane isotropic all-quad / quad-dominant mesh generator from the CM2 MeshTools SDK for plane mixed quadrangle-triangle meshes.

Training + Custom Developments and Extensions

We love our code. As we have been and are still working hard to develop it, we know it inside out. No one is better suited to help you in many ways.

We are standing by to assist with the integration of our SDK into your programs. Training sessions are available either at your location or in our offices right here in Versailles, France. We’ll be happy to teach you to use our code, to integrate it and get the best out of it to power and enhance your applications.

We are open to suggestions to expand the boundaries of our CM2 MeshTools SDK and CM2 FEM SDK with new features tailored to your specific needs. We can also design and develop exclusive full custom-made code for you.
