CM2 QuadMesh Aniso

current version: 5.4.1 (March 2024)

Delaunay Plane Anisotropic All-Quad/Quad-Dominant
Mesh Generator

CM2 QuadMesh Aniso is our Delaunay plane anisotropic all-quad / quad-dominant mesh generator for your FEA (Finite Element Analysis) applications. Whereas the iso counterpart tends to generate equilateral elements adapted to local isotropic mesh sizes (scalars), this mesher generates stretched quadrangles (and some triangles in quad-dominant mode) adapted to local anisotropic metrics (2×2 symmetric matrices defining 2 directions and 2 sizes at each node).

CM2 QuadMesh Aniso also respects user-defined constraints: outer and inner boundary edges, specific embedded edges and nodes, local mesh sizes (anisotropic), maximum size gradations and background mesh.

High-order elements, for instance 9-node quads and 6-node triangles, can be generated with the help of CM2 MeshTools  SDK core functions (provided free of charge with all licenses).

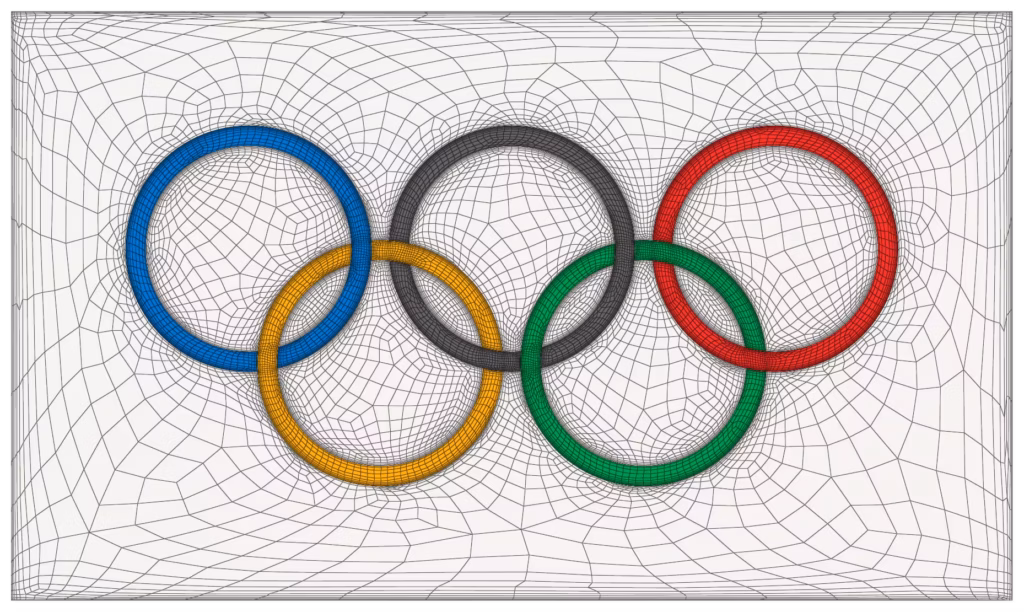

Quad-Dominant Mode

All-Quad Mode

Technical
Specifications

  • Plane mesh generator (2D)
  • Anisotropic
  • Hybrid Advancing-front & Delaunay
  • 2-node edges (outer/embedded), inner nodes (embedded)
  • Mixed 4-node quadrangles and 3-node triangles,
    or all-quad (with conditions)
  • no
  • ≥ 3 000 elements / s.

*Speed tests done on Win10 x64 Pro, Intel® Xeon E3 v2 1370 @3.5 GHz (turbo boost disabled), 8 threads.

Strong Foundations

CM2 QuadMesh Aniso is written in streamlined standard C++ with a clear API.

Pre-compiled dynamic libraries and source code are available for Microsoft Windows, Linux and Apple macOS.
Visit the CM2 MeshTools SDK page to learn about all available builds.

Easy Integration with C++ on Microsoft Windows, Linux and Apple macOS

A COM interface is also available making CM2 QuadMesh Aniso callable from other languages such as Visual Basic, C#, F# and Delphi.

Microsoft .NET, Visual Studio, C-Sharp, F-Sharp and Delphi also available
NEED MORE INFORMATION?

Free 45-Day Trial

Find out for yourself how easy it is to integrate our SDK into your products. We offer a free 45-day trial. All you need to request your trial is a free developer account.

Like to open a free developper account with us?
Just submit this registration form.

You already have a free developer account with us?
Just log in and visit our trial request page.

Pricing + Support Services

Pricing and discount policies are available in the pricing brochures. To download them, we only require you to open a developper account with us. It's free: just fill and submit this registration form. It's that easy!

We offer the first 12 months of our comprehensive Support Services with your initial purchase of CM2 QuadMesh Aniso.

Computing Objects professional support services are available directly from our website (access our support services) or via email. They includes downloads of all the latest updates: critical, minor (regular bug fixing) and major updates (enhancements + new features).

We offer special discounts on support services extensions (12, 24 or 36-month) when ordered with your initial purchase.

After this initial period, support services can be easily renewed at the regular price.
Please refer to our latest pricing brochures or contact us if you have any questions.
